Overview
The Digital Dreams Series units are Ethernet based designed to be mounted on wall or near electrical junction box concealed in side the wall or on wall. The unit is consisting of Power Supply, Control section. The unit is self powered with single phase supply used locally. LED Indicators inside the unit shows the status of CPU Unit. IR Receiver is used to receive various individual remote IR signals to learn command. The device supports 4 Hybrid IR ports which can be used in patch / blaster mode.
Application Area
- Retail & SOHO
- Office buildings
- Residential complexes
- Educational facilities
- Hospitality
- Government institutions
Download
| IRA | Datasheet |
Features
- 4 Hybrid ports - blaster & patch mode
- 2 GPIO ports
- 10m cable length support
- Supports UDP, TCP, ARP, ICMP (ping), DHCP, PPPoE, LCP
- Server, client, and server/client network ("routing") modes
- Low-power (40mA@5V)
- Large Routing Buffers

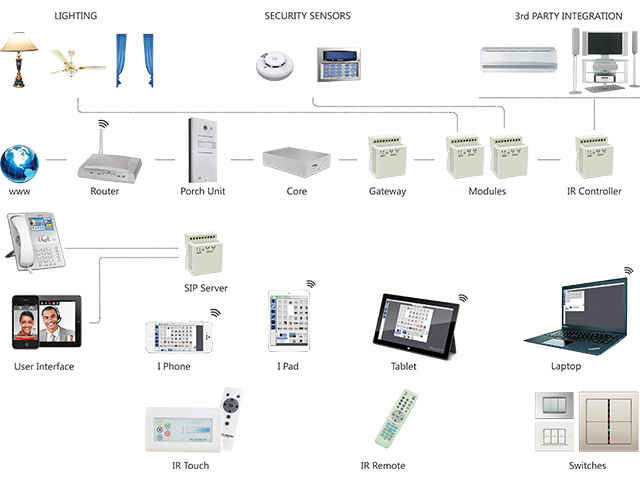

Basic Usage
Specification
| Inputs | |
| Supply Control Input | 230V ±10% 50Hz Single Phase – Phase, Neutral and Earth |
| Operating Conditions | 0º to 40ºC ambient temperature, 0% to 95% RH non condensing |
| Surge protection Enclosure | |
| Brownout/Sag protection ABS DIN Rail enclosure (3 unit) | |
| Spike protection | |
| Dimensions | |
| L 100 mm X H 80 mm X D 35 mm | |
