DD Home/Lighting Automation

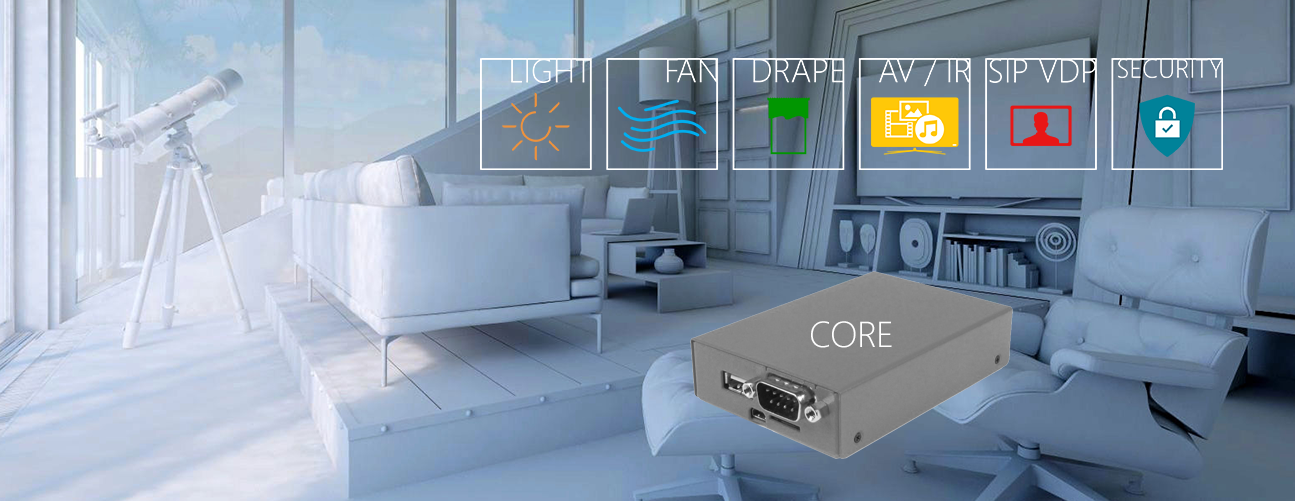

Central hub responsible for providing the browser based interface for control and monitoring.

Application Area

  •  Retail & SOHO
  •  Office buildings
  •  Residential complexes
  •  Educational facilities
  •  Hospitality
  •  Government institutions


Core Datasheet


  •  365x24x7 Industrial Grade Embedded Hardware
  •  Web control interface
  •  Upgradeable via Internet
  •  Unique FQDN link for remote control and monitoring
  •  Supports UDP, TCP, ARP, ICMP (ping), DHCP, PPPoE, LCP
  •  RS232 interface for SMS Control
  •  Built-in 8 GPIO for mood lighting

Basic Usage


Power Supply
Supply Control Input230V ±10% 50Hz Single Phase – Phase, Neutral and Earth
Operating Conditions0º to 40ºC ambient temperature, 0% to 95% RH non condensing
Surge protection Enclosure
Brownout/Sag protection ABS DIN Rail enclosure (3 unit)
Spike protection
L 100 mm X H 80 mm X D 35 mm
